New Warehouse Installation Case Study

PROJECT BRIEF

Salesperson: George Ives
[email protected]
BSE UK were contacted and asked to provide Pallet Racking in an area for their new warehouse, along with a secure shelving area.

PRODUCTS USED

Pallet Racking
Bay Details

Bay Type 1
4000mmh x 2700mmw x 1100mmd
3 no. beam levels per bay

Bay Type 2
4000mmh x 2700mmw x 1100mmd
2 no. beam levels per bay

Bay Type 3
4000mmh x 1350mmw x 1100mmd
2 no. beam levels per bay

Finish
Beams – painted orange
Frames – pre galvanised

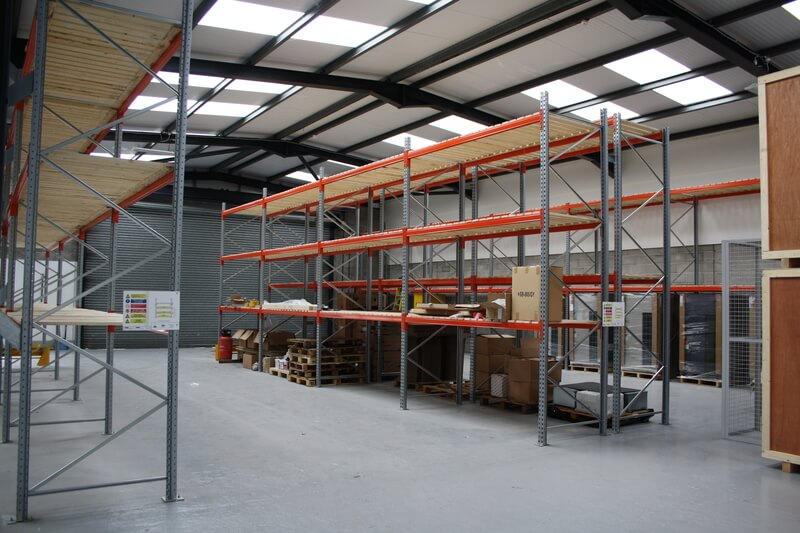

Layout Details

1 no. single entry run comprising of 5 no. Bay Type 2 and 1 no. Bay Type 3
1 no. double entry run comprising of 4 no. Bay Type 1 back to back
1 no. single entry run comprising of 4 no. Bay Type 2

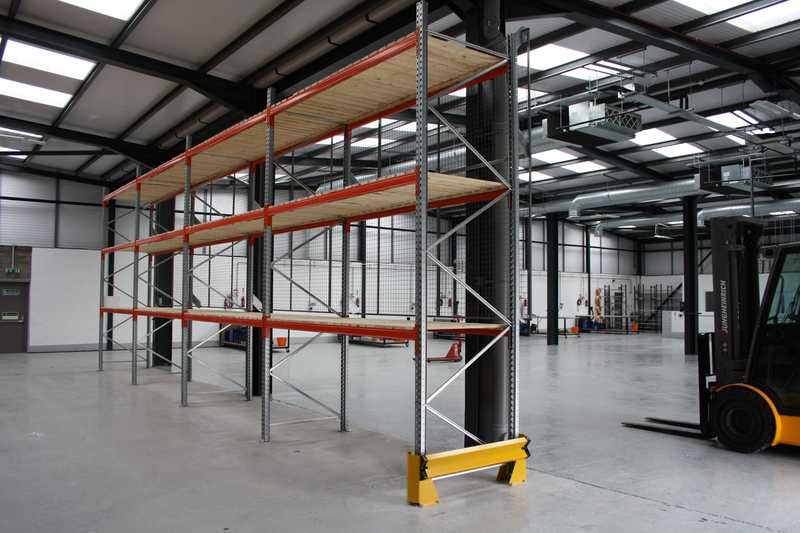

Anti-Collapse Mesh

1 no. length of anti-collapse mesh 11,250mm length x 2650mm h
This is to be added to the back of the single entry run comprising of 4 no. Bay Type 2

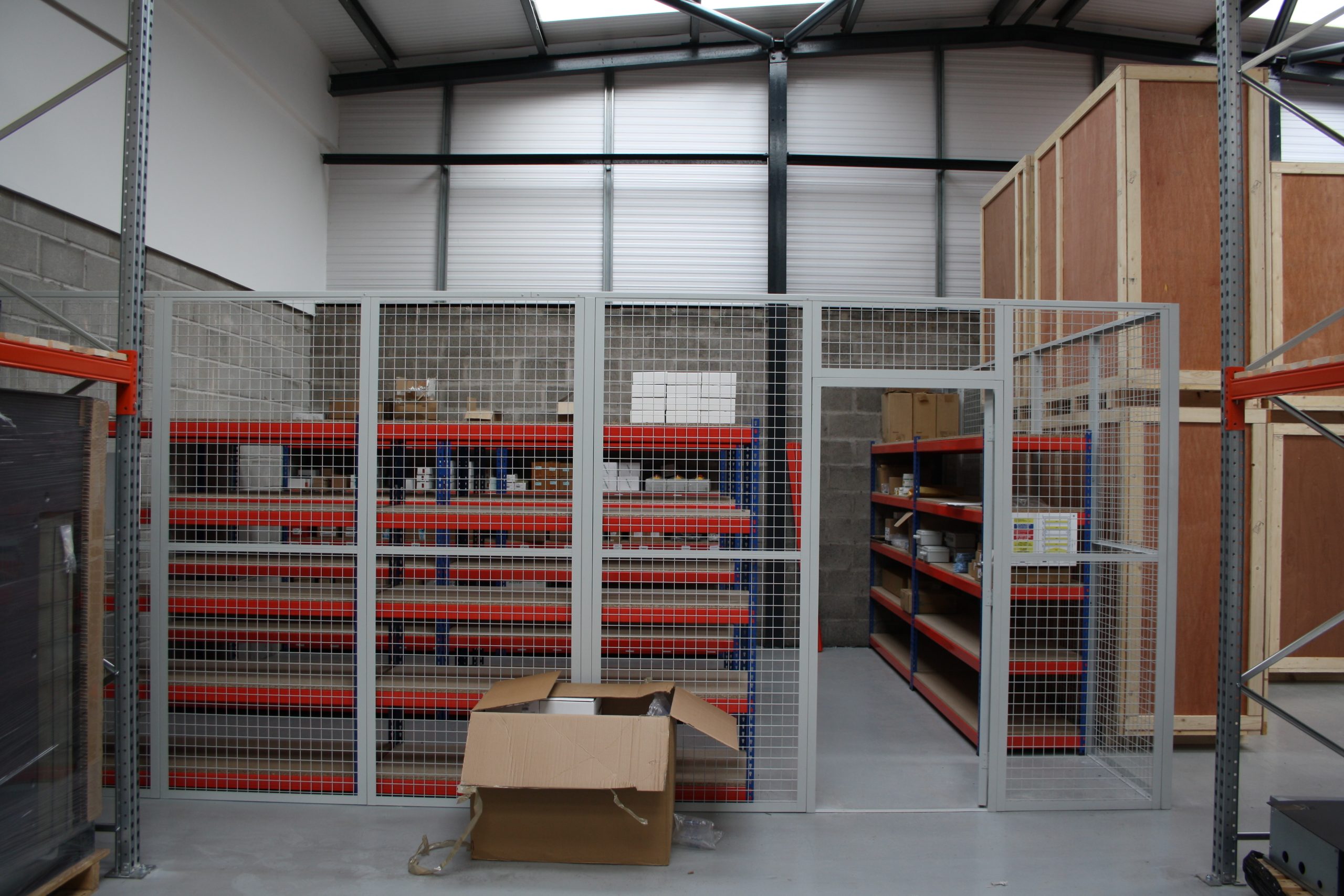

Mesh Cage

Angle Frame Mesh Partitioning 2.400m High
2’’ x 2’’ x 10g Mesh
1 – Run 5.700m to include 1 no. Single Door 900mm Wide
1 – Run 4.700m Long

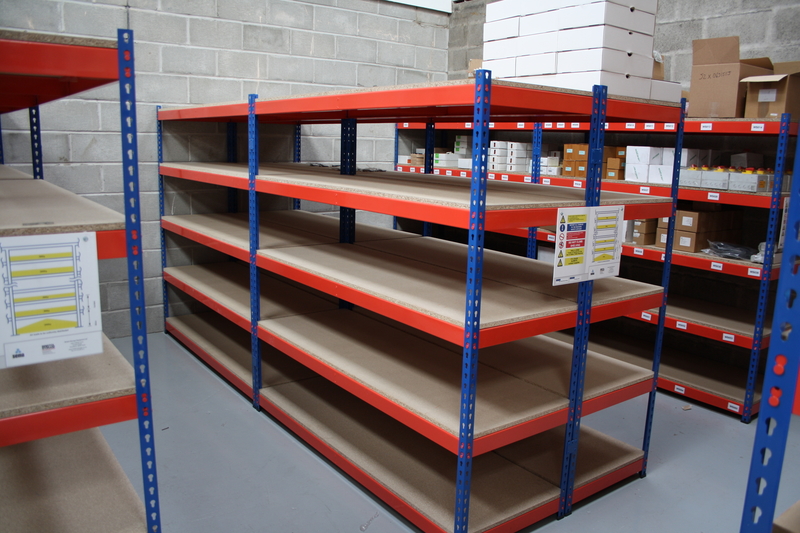

Warehouse shelving

10 bays Warehouse Shelving 1830mmh x 1830mmw x 610mmd (each to have 5 chipboard decked levels)

Finish
Beams – Orange
Uprights – Blue

End Barriers

2 no. End Barriers 2400mm length
